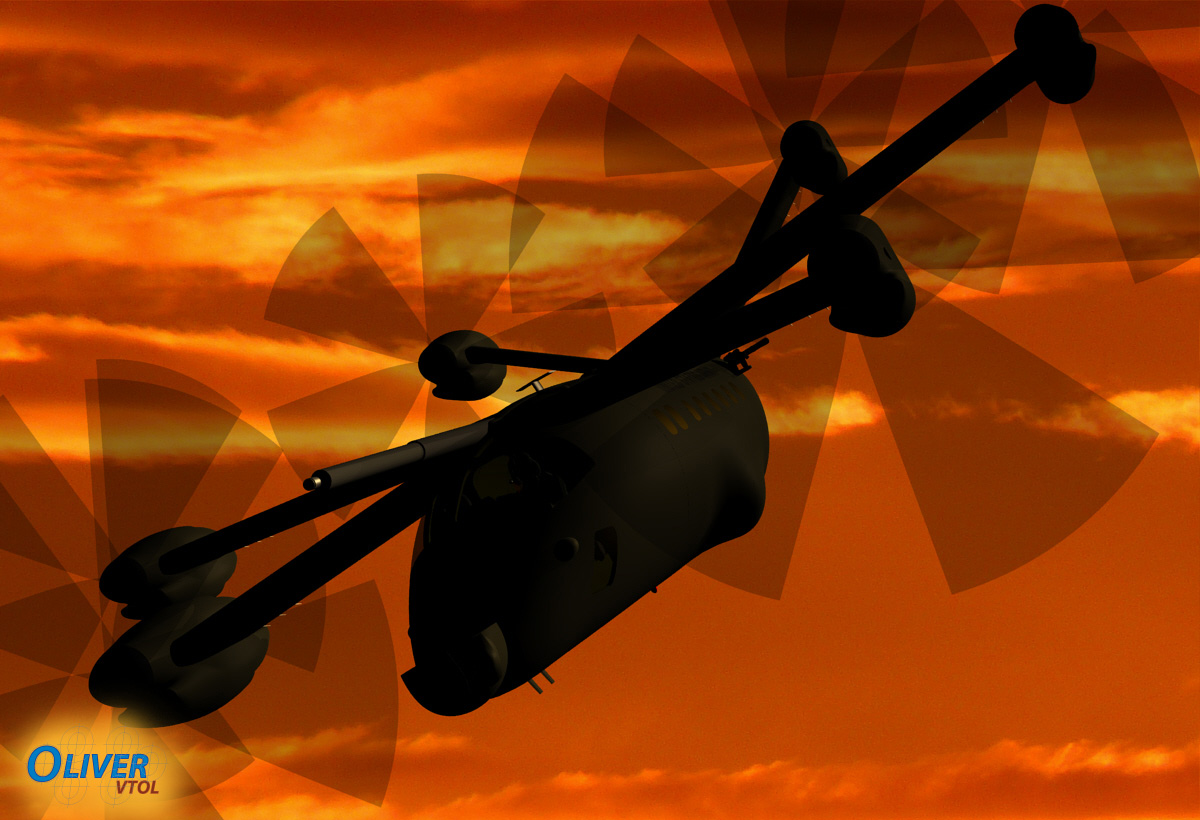

HEXPLANE FVL:  SPECIFICATIONS

Length:

Fuselage:  50' 2"

Overall:  56' 5"

Wingspans:

Forward: 28' 8"

Middle:  46' 1"

Aft:  23' 6"

Height:

Fuselage:  10' 5"

Overall:  20'

Cabin Dimensions:

Height (max):  6' 6"

Length: 36' 1"

Width (max):  7' 8"

Gross Weight:  26,000 lbs

Empty Weight: 16,900 lbs

Fuel capacity:  5600 lbs

Useful Load:  9,100 lbs

Armament:

3 Dillon M134D-T

Powerplant:

6 General Electric T700 engines

Propellers:

Area:  289 ft^2

Normal Loading: 15lbs/ft^2

Radius:  9.6’

Blades:  5

Speeds:

Cruise:  350 KTAS

Maximum:  Confidential

Range

Cruise speed:  Greater than 1200 Statute miles

  w/reserves

Maximum: Confidential

Altitude:

Cruise:  25,000 feet

Maximum:  Greater than 30,000 feet

Max HOGE: Significantly greater than Blackhawk HOGE

OEI HOGE:  Greater than 6K95 conditions

SSL Climb Rate:  Greater than 9,000 fpm
